LianTronics Custom Quote 8142026JA

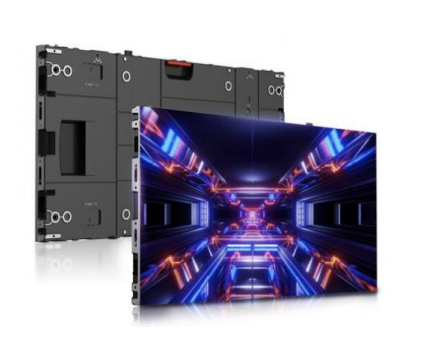

BIM Plus-X Indoor Series P2.6 Direct-View LED Display

Complete 4.0m W x 2.0m H (approx. 13.12' W x 6.56' H) indoor direct-view LED display providing approximately 8.0 m² / 86.11 sq. ft. of active display area.
Native screen resolution: 1536 x 768 pixels / 1,179,648 total pixels. Display consists of 16 aluminum LED cabinets arranged 4 cabinets wide x 4 cabinets high.

DISPLAY SPECIFICATIONS:
• Pixel Pitch: 2.6mm
• Pixel Configuration: 1R / 1G / 1B
• LED Type: SMD2020
• Pixel Density: 147,456 pixels/m²
• Brightness: 800 cd/m²
• Refresh Rate: 3840Hz
• Gray Level: 14–16 bit
• Viewing Angle: 160° Horizontal / 160° Vertical
• Recommended Viewing Distance: >2.5m
• Ingress Protection: IP20
• LED Lifetime at 50% Brightness: >100,000 hours
• Blind Spot Rate: ≤0.0003
• Input Voltage: AC 110V–240V
• Operating Temperature: -20°C to +60°C
• Operating Humidity: 10%–90%
• ETL / FCC Certified
• Flash Driving IC

LED MODULE:
• Module Size: 250mm x 250mm
• Module Resolution: 96 x 96 pixels

LED CABINETS:
• Quantity: 16
• Aluminum Construction
• Cabinet Size: 1000mm x 500mm x 40mm / 750mm x 500mm x 40mm
• Cabinet Resolution: 384 x 192 / 288 x 192 pixels
• Module Quantity per Cabinet: 8 / 6
• Maximum Power Consumption: 238W per cabinet
• Average Power Consumption: 60W per cabinet
• Front-Serviceable Design

PROCESSING / CONTROL:
• NovaStar VX600 Pro Video Processor – Qty. 1
• NovaStar A5S Plus Receiving Cards – Qty. 16
• Front Service Tool – Qty. 1
• Control distance up to 120 meters via UTP CAT6 network cable without relay
• Optical fiber transmission supported for extended distances
• Supported video processor sources include HDMI, HD-SDI, SDI, VGA, RJ45 and YC

SPARE PARTS PROVIDED WITH ONE DISPLAY:
• 250mm x 250mm LED Modules – Qty. 14
• Power Supplies – Qty. 3
• Receiving Cards – Qty. 3
• Additional LED Modules – Qty. 2
• Inter-Cabinet Power Supply Cable – Qty. 1
• Inter-Cabinet Signal Cable – Qty. 1
• HUB Cards – Qty. 4
• Main Data Cable – Qty. 1
• Main Power Cable – Qty. 1
• Associated standard components including screws, mounting plates, power supply cables, signal cables and related hardware

Manufacturer Warranty: 2 Years
