PI-10633

16.4' x 9.84' UpadIV 3.9 LED Wall Configuration consisting of the following:

Cabinet Configuration 10 WIDE. 6 HIGH
Feet 16.40 x 9.84
Meters 5.00 x 3.00
Resolution 1,280 x 768
Weight 833 lbs (378 kg)
Max Power 7,200 W, 20,268 BTU
Typical Power 2,400 W, 6,756 BTU

Screen Diagonal (inches) 229.57"
Minimum 120VAC 20A Circuits - 6
Aspect Ratio 1.67
Display QTY 1
Data Cables Needed - 4

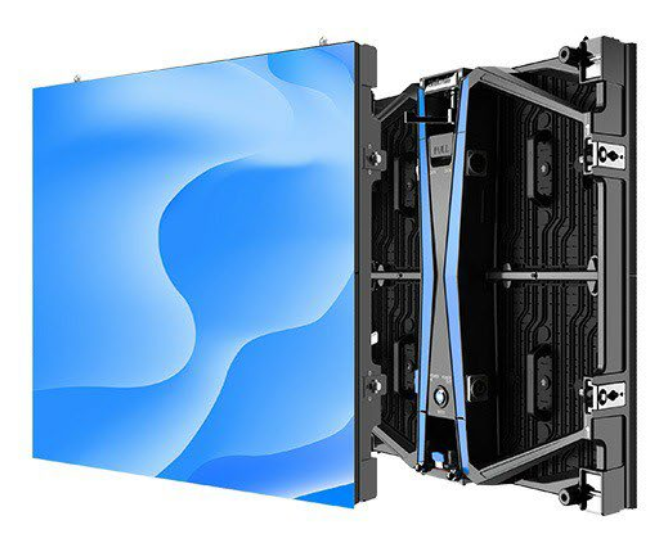

(60) UpadIV 3.9 Cabinets
(6) Spare Modules

(1) LED Controller - NOVASTAR MCTRL660 Pro 8-bit

(5) Hanging Bar (1M), Hanging Bars. Can hold 1 meter wide

Ground Support System (Double Bracket), Ground support system with components (cannot exceed 6 meters)

(10) Single Hanging & Ground Bar, Hanging and ground support. Holds 1 cabinet column wide.

(5) Ground Support Ski

(15) Double Back Bracket

(15) Clamps

(15) Reinforced Pipe (1m)

(5) Maintenance Platform

Install Support, Onsite Installation Service
Onsite certification

SpareParts:
Modules 6 pcs
LED Packages 295 pcs
Driver IC 48 pcs
Module Masking 30 pcs
Power Supplies 3 pcs
Power Input Cables 3 pcs
Signal Input Cables 3 pcs
Receiving Card 3 pcs
Hub Card 3 pcs
Data Uploading Pinboard 3 pcs
Power & Signal Pinboard 3 pcs
