PL3.9 V10CenterScreen

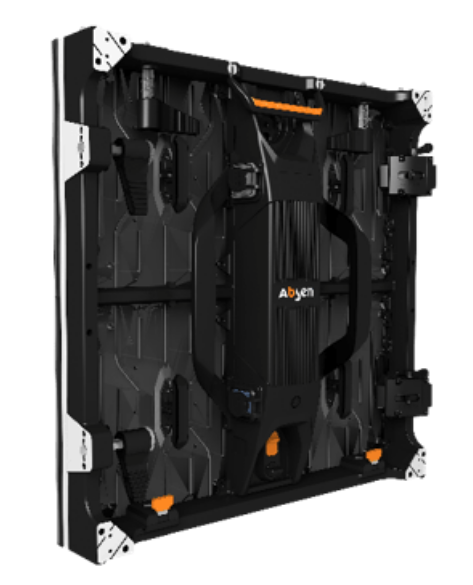

PL3.9 V10 (3.9 mm)-Novastar

Dimension (WxH):
8.000 m x 4.500 m = 36.00 sqm
26.25 ft x 14.76 ft = 387.45 sqft

Diagonal:
9.18 m / 361.37 in / 30.12 ft

Aspect Ratio (WxH): 1.778 : 1

Weight: 1109 kg / 2444 lbs

Resolution (WxH): 2048 x 1152

Panels Matrix (WxH): 16 x 9(500mm x 500mm)

Panels Per Screen: 144

Primary Data Runs Required: 5

Max Panels of Data Cascade: 35

Max Power Requirement: 19440 W

Heat Load: 66330 BTU/hr

AC Outlets Required: 8 @208V/16A outlet OR 15 @110V/16A outlet

Max Panels of Power Cascade: 19 @208V OR 10 @110V

Total Screen: 1



ABSEN PARTS:
144x PL3.9 V10(500mm x 500mm)
18x PL3.9 V10 module
5x Power Hub
5x Receiving card Hub
5x Power Supply
18x PL regular size flight case 8 in 1
1x Double hanging bar flight case 10 in 1
8x PL Double hanging bar standard A version
1x Vacuum front service tool
1x Spare Parts Flight Case
5x PL Series Main Data Cable
14x PL Series main Power Cable
1x Free 3% spare parts including Modules, Receiving cards, Powers and Cables



THIRD PARTY PARTS:
5x Receiving Card A5s
1x Nova VX16S

ABSEN SERVICE:
Installation Support Package 1 Tech: 161-200 Panels Installation Support Package (2 weeks notice)Including onsite installation guidance / Commissioning / Training / Install damaged pixels repair at ASC
