PL3.9 V10SideColumns

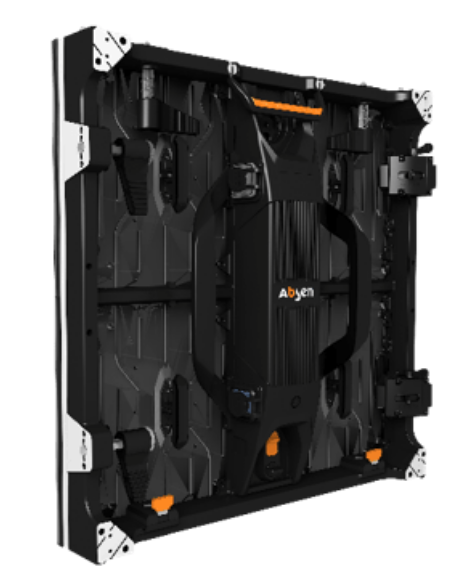

PL3.9 V10 (3.9 mm)-Novastar

Dimension (WxH):
2.000 m x 4.500 m = 9.00 sqm
6.56 ft x 14.76 ft = 96.83 sqft

Diagonal:
4.92 m / 193.88 in / 16.15 f

Aspect Ratio (WxH): 0.444 : 1

Weight: 277 kg / 611 lbs

Resolution (WxH): 512 x 1152

Panels Matrix (WxH): 4 x 9(500mm x 500mm)

Panels Per Screen: 36

Primary Data Runs Required: 2

Max Panels of Data Cascade: 35

Max Power Requirement: 4860 W

Heat Load: 16583 BTU/hr

AC Outlets Required: 2 @208V/16A outlet OR 4 @110V/16A outlet

Max Panels of Power Cascade: 19 @208V OR 10 @110V

Total Screen: 2



ABSEN PARTS:
72x PL3.9 V10(500mm x 500mm)
10x PL3.9 V10 module
4x Power Hub
4x Receiving card Hub
4x Power Supply
2x PL Series Main Data Cable
6x PL Series main Power Cable
9x PL regular size flight case 8 in 1
1x Free 3% spare parts including Modules, Receiving cards, Powers and Cables

THIRD PARTY PARTS:
4x Receiving Card A5s
