PL3.9 V10SideScreen

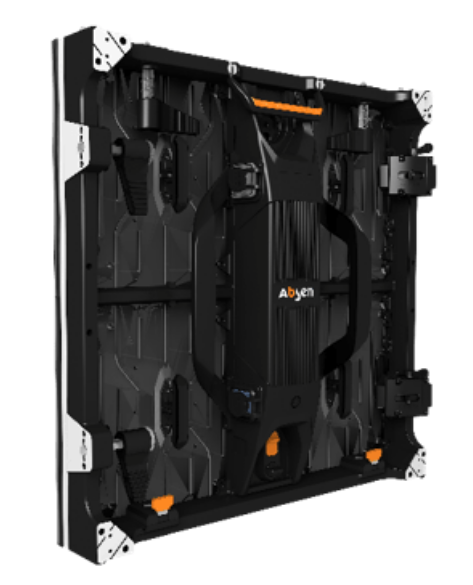

PL3.9 V10 (3.9 mm)-Novastar

Dimension (WxH):
6.500 m x 3.500 m = 22.75 sqm
21.33 ft x 11.48 ft = 244.87 sqft

Diagonal:
7.38 m / 290.65 in / 24.22 ft

Aspect Ratio (WxH): 1.857 : 1

Weight: 701 kg / 1545 lbs

Resolution (WxH): 1664 x 896

Panels Matrix (WxH): 13 x 7(500mm x 500mm)

Panels Per Screen: 91

Primary Data Runs Required: 3

Max Panels of Data Cascade: 35

Max Power Requirement: 12285 W

Heat Load: 41917 BTU/hr

AC Outlets Required: 5 @208V/16A outlet OR 10 @110V/16A outlet

Max Panels of Power Cascade: 19 @208V OR 10 @110V

Total Screen: 2



ABSEN PARTS:
182x PL3.9 V10(500mm x 500mm)
22x PL3.9 V10 module
6x Power Hub
6x Receiving card Hub
6x Power Supply
24x PL regular size flight case 8 in 1
1x Vacuum front service tool
1x Spare Parts Flight Case
12x PL Double hanging bar standard A version
2x PL Single hanging bar standard A version
2x Double hanging bar flight case
20x PL Series main Power Cable
6x PL Series Main Data Cable
1x Free 3% spare parts including Modules, Receiving cards, Powers and Cables

THIRD PARTY PARTS:
6x Receiving Card A5s
1x Nova VX16S

ABSEN SERVICE:
Installation Support Package 1 Tech: 161-200 Panels Installation Support Package (2 weeks notice)Including onsite installation guidance / Commissioning / Training / Install damaged pixels repair at ASC
