UpadIV2.6-PI-06305

Cabinet Configuration 16 x 9 (Feet 26.25 x 14.76)

Meters 8.00 x 4.50

Resolution 3,072 x 1,728

Weight 2,000 lbs 907 kg

Max Power 17,280 W 48,643 BTU
Typical Power 5,760 W 16,214 BTU

Screen Diagonal (inches) 361.37"

Minimum 120VAC 20A Circuits 11

Aspect Ratio 1.78

Display QTY 1

Data Cables Needed 16

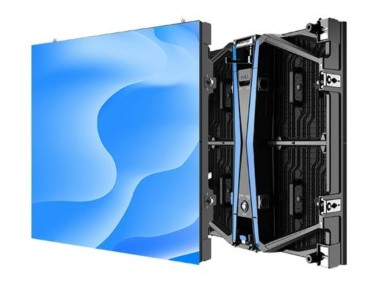

Section 1: UpadIV

Total Pixels 5,308,416

Cabinet Quantity 144

Module Quantity 576

Module Size 250mm x 250mm (9.84in x 9.84in)

Cabinet Size 500mm x 500mm (20in x 20in)

Brightness (nits) 1000

LED Lamp SMD1515

Warranty 2 Years

Service Front/Rear

12 Spare Modules



Section 2: Control System
4 NovaPro HD LED Controllers



Section 3: Accessories
1x Pallet Case For modules and cabinets

1x Hanging Bars with Eye Hook or Truss Clamp



Section 4: Installation
Standard onsite installation support
Onsite certification



Section 5: Spare Parts
1593x LED Packages
256x Driver IC
160x Module masking
8x Modules
8x Power supplies
8x Power input cables
8x Signal Input Cables
8x Receiving Card
8x Hub Card
8x Data Uploading Pinboard
8x Power and Signal Pinboard
