UpadIV2.6-PI-06306

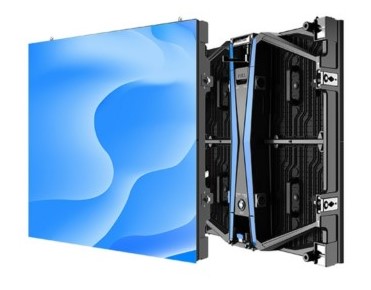

Unilumin Upad IV 2.6 (500x500)

Cabinet Configuration 4 x 9 (Feet 6.56 x 11.48)

Meters 2.00 x 4.50

Resolution 768 x 1,728

Weight 500 lbs 227 kg

Max Power 4,320 W 12,161 BTU
Typical Power 1,440 W 4,054 BTU

Screen Diagonal (inches) 193.88"

Minimum 120VAC 20A Circuits 4

Aspect Ratio .44

Display QTY 2

Data Cables Needed 16




Section 1: Upad IV

Total Pixels 2,654,208

Cabinet Quantity 72

Module Quantity 288

Module Size 250mm x 250mm (9.84in x 9.84in)

Cabinet Size
72x 500mm x 500mm (20in x 20in)

Brightness (nits) 1000

LED Lamp SMD1515

Warranty 2 Years

Service Front/Rear

6 Spare Modules



Section 2: Control System
4 NovaPro HD LED Controllers



Section 3: Accessories
1x Pallet Case For modules and cabinets

1x Hanging Bars with Eye Hook or Truss Clamp



Section 4: Installation
Standard onsite installation support
Onsite certification



Section 5: Spare Parts
797x LED Packages
128x Driver IC
80x Module masking
4x Modules
4x Power supplies
4x Power input cables
4x Signal Input Cables
4x Receiving Card
4x Hub Card
4x Data Uploading Pinboard
4x Power and Signal Pinboard
