UpadIV3.9-PI-06306

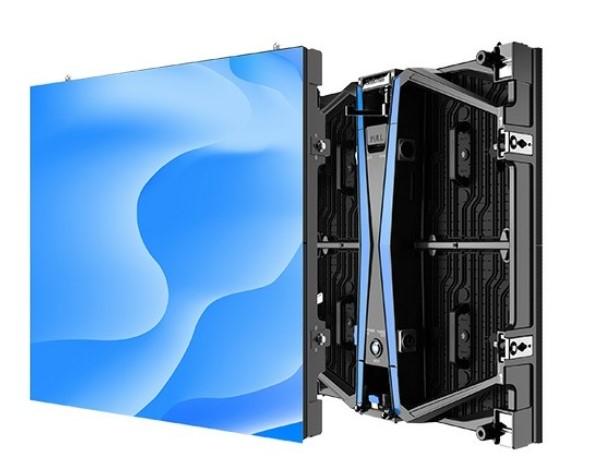

Upad IV 3.9 (500x500)

Cabinet Configuration 4 x 9 (Feet 6.56 x 11.76)

Meters 2.00 x 4.50

Resolution 512 x 1,152

Weight 500 lbs 227 kg

Max Power 4,320 W 12,161 BTU
Typical Power 1,440 W 4,054 BTU

Screen Diagonal (inches) 193.88"

Minimum 120VAC 20A Circuits 4

Aspect Ratio .44

Display QTY 4

Data Cables Needed 16




Section 1: Upad IV

Total Pixels 2,359,296

Cabinet Quantity 144

Module Quantity 576

Module Size 250mm x 250mm (9.84in x 9.84in)

Cabinet Size
72x 500mm x 500mm (20in x 20in)

Brightness (nits) 1000

LED Lamp SMD2121

Warranty 2 Years

Service Front/Rear

20 Spare Modules



Section 2: Control System
1 NovaPro UHD Jr. LED Controller



Section 3: Accessories
1x Pallet Case For modules and cabinets

4x Hanging Bars with Eye Hook or Truss Clamp

4x Floor Stand with supports (cannot exceed 6 meters)



Section 4: Installation
Standard onsite installation support
Onsite certification



Section 5: Spare Parts
708x LED Packages
114x Driver IC
71x Module masking
8x Modules
8x Power supplies
8x Power input cables
8x Signal Input Cables
8x Receiving Card
8x Hub Card
8x Data Uploading Pinboard
8x Power and Signal Pinboard
