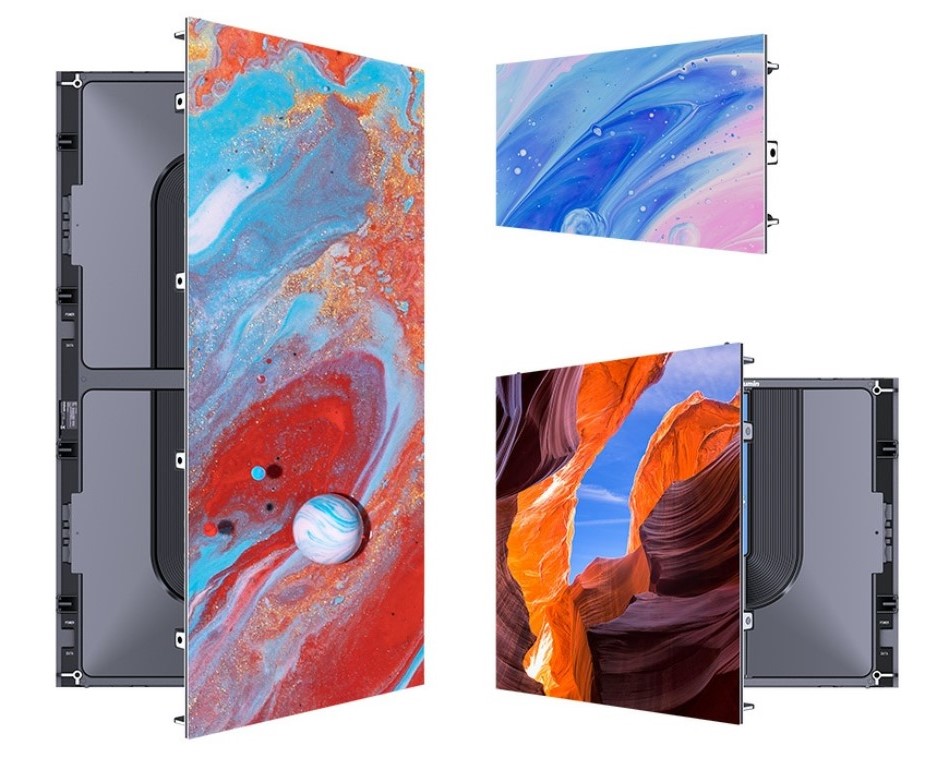

UslimII1.5-Landscape

Uslim II 1.5 (500x1000)
Uslim II 1.5 (500x250)

Cabinet Configuration 8 x 3 (Feet 13.12 x 7.38)

Meters 4.00 x 2.25

Resolution 2,560 x 1,440

Weight 427 lbs 194 kg

Max Power 4,840 W 13,625 BTU
Typical Power 1,616 W 4,549 BTU

Screen Diagonal (inches) 180.68"

Minimum 120VAC 20A Circuits 6

Aspect Ratio 1.78

Display QTY 1

Data Cables Needed 16




Section 1: Uslim-II

Total Pixels 3,686,400

Cabinet Quantity 24

Module Quantity 144

Module Size 250mm x 250mm (9.84in x 9.84in)

Cabinet Size
16x 500mm x 1,000mm (20in x 39in)
8x 500mm x 250mm (20in x 10in)

Brightness (nits) 1000

LED Lamp SMD1212

Warranty 2 Years

Service Front/Rear

4 Spare Modules



Section 2: Control System
1 MCTRL4K LED Controller



Section 3: Accessories
1x Pallet Case For modules and cabinets



Section 4: Installation
Standard onsite installation support
Onsite certification



Section 5: Spare Parts
1106x LED Packages
178x Driver IC
111x Module masking
2x Modules
2x Power supplies
2x Power input cables
2x Signal Input Cables
2x Receiving Card
2x Hub Card
2x Data Uploading Pinboard
2x Power and Signal Pinboard
