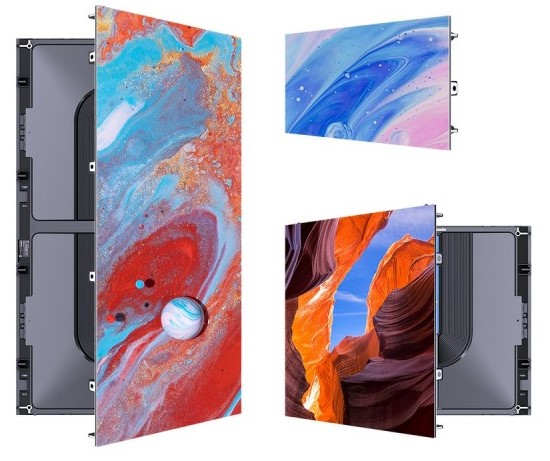

UslimII1.5-Portrait

Uslim II 1.5 (500x1000)

Cabinet Configuration 6 x 4 (Feet 9.84 x 13.12)

Meters 3.00 x 4.00

Resolution 1920 x 2,560

Weight 556 lbs 252 kg

Max Power 6,456 W 18,174 BTU
Typical Power 2,160 W 6,080 BTU

Screen Diagonal (inches) 196.85"

Minimum 120VAC 20A Circuits 5

Aspect Ratio .75

Display QTY 1

Data Cables Needed 32




Section 1: Uslim-II

Total Pixels 4,915,200

Cabinet Quantity 24

Module Quantity 192

Module Size 250mm x 250mm (9.84in x 9.84in)

Cabinet Size
24x 500mm x 1,000mm (20in x 39in)

Brightness (nits) 1000

LED Lamp SMD1212

Warranty 2 Years

Service Front/Rear

5 Spare Modules



Section 2: Control System
2 MCTRL4K LED Controller



Section 3: Accessories
1x Pallet Case For modules and cabinets



Section 4: Installation
Standard onsite installation support
Onsite certification



Section 5: Spare Parts
1475x LED Packages
238x Driver IC
148x Module masking
5x Modules
2x Power supplies
2x Power input cables
2x Signal Input Cables
2x Receiving Card
2x Hub Card
2x Data Uploading Pinboard
2x Power and Signal Pinboard
