UslimII3.2-PI-06304

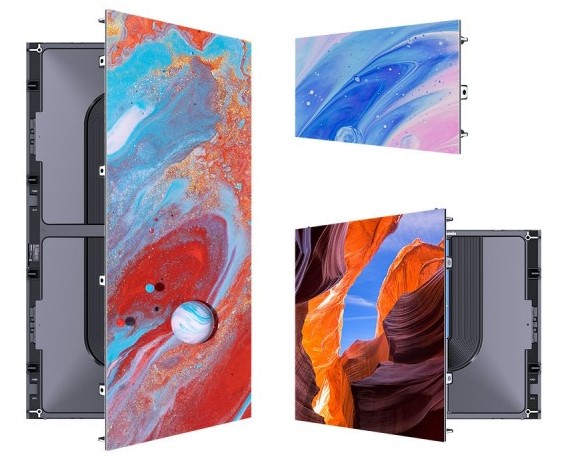

Uslim II 3.2 (500x1000)
Uslim II 3.2 (500x250)

Cabinet Configuration 15 x 5 (Feet 24.61 x 13.94)

Meters 7.50 x 4.25

Resolution 2,340 x 1,326

Weight 1,495 lbs 678 kg

Max Power 15,885 W 44,717 BTU
Typical Power 5,295 W 14,906 BTU

Screen Diagonal (inches) 339.39"

Minimum 120VAC 20A Circuits 12

Aspect Ratio 1.76

Display QTY 2

Data Cables Needed 32




Section 1: Uslim-II

Total Pixels 6,205,680

Cabinet Quantity 150

Module Quantity 1020

Module Size 250mm x 250mm (9.84in x 9.84in)

Cabinet Size
120x 500mm x 1,000mm (20in x 39in)
30x 500mm x 250mm (20in x 10in)

Brightness (nits) 1000

LED Lamp SMD2121

Warranty 2 Years

Service Front/Rear

26 Spare Modules



Section 2: Control System
2 NovaPro UHD Jr. LED Controllers



Section 3: Accessories
1x Pallet Case For modules and cabinets

30x Flying Bars with Braided Cables



Section 4: Installation
Standard onsite installation support
Onsite certification



Section 5: Spare Parts
1862x LED Packages
300x Driver IC
187x Module masking
26x Modules
8x Power supplies
8x Power input cables
8x Signal Input Cables
8x Receiving Card
8x Hub Card
8x Data Uploading Pinboard
8x Power and Signal Pinboard
