UslimII3.9-PI-06304

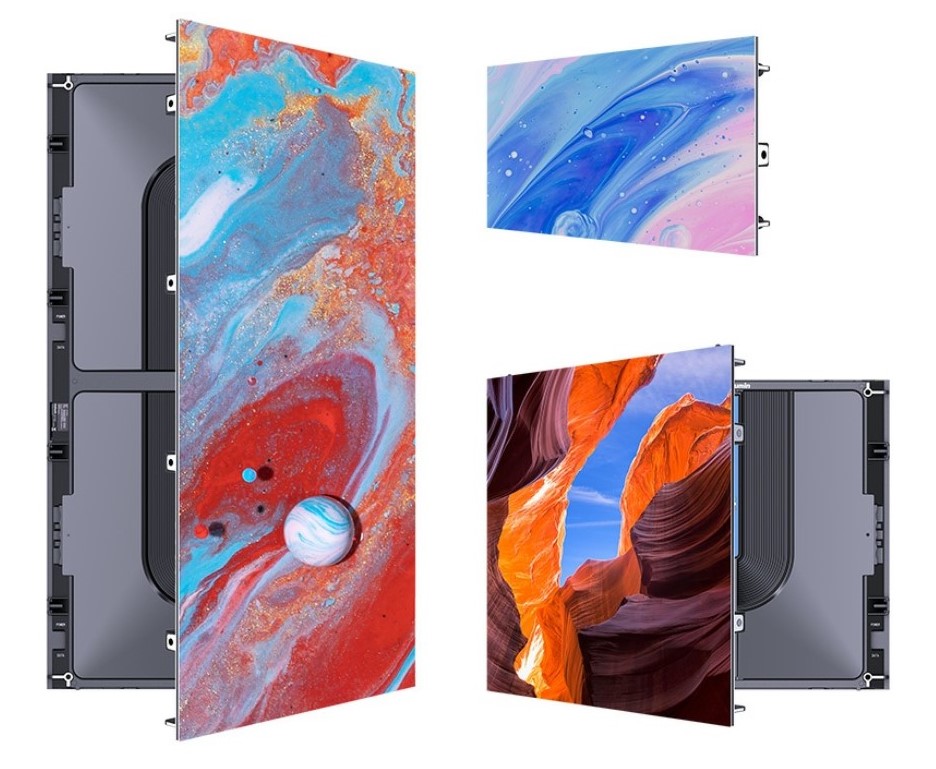

Unilumin Uslim II 3.9 (500x1000) & Uslim II 3.9 (500x500)

Cabinet Configuration 13 x 4 (Feet 21.33 x 11.48)

Meters 6.50 x 3.50

Resolution 1,644 x 896

Weight 1,063 lbs 482 kg

Max Power 10,231 W 28,880 BTU
Typical Power 3,406 W 9,588 BTU

Screen Diagonal (inches) 290.65"

Minimum 120VAC 20A Circuits 8

Aspect Ratio 1.86

Display QTY 2

Data Cables Needed 8




Section 1: Uslim-II

Total Pixels 2,981,888

Cabinet Quantity 104

Module Quantity 728

Module Size 250mm x 250mm (9.84in x 9.84in)

Cabinet Size
78x 500mm x 1,000mm (20in x 39in)
26x 500mm x 500mm (20in x 20in)

Brightness (nits) 1000

LED Lamp SMD2121

Warranty 2 Years

Service Front/Rear

19 Spare Modules



Section 2: Control System
2 NovaPro HD LED Controllers



Section 3: Accessories
1x Pallet Case For modules and cabinets

26x Flying Bars with Braided Cables



Section 4: Installation
Standard onsite installation support
Onsite certification



Section 5: Spare Parts
895x LED Packages
144x Driver IC
90x Module masking
19x Modules
6x Power supplies
6x Power input cables
6x Signal Input Cables
6x Receiving Card
6x Hub Card
6x Data Uploading Pinboard
6x Power and Signal Pinboard
